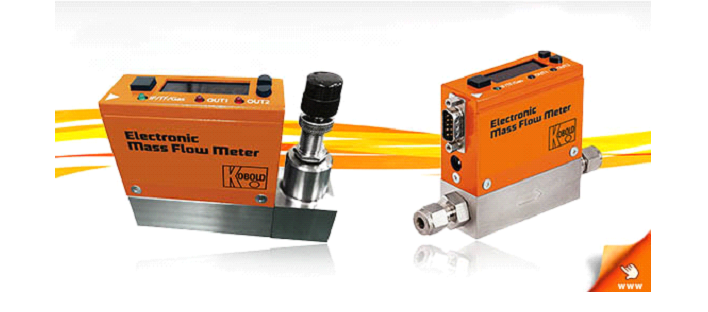

MAK – Thermal Mass Flow Meter

The new MAK series KOBOLD digital mass flow meter has been specially developed for use in gas measurement, where excellent accuracy, high reliability, robust casing, stainless materials and maximum flexibility are important.
MAK is equipped with an indicator that employs a proven flow sensor. It has a function to indicate the integrated flow rate, in addition to the existing instantaneous flow rate indication.
A model with a flow sensor and precision needle valve in one unit is also available.

Special Advantages

✔ Direct mass flow measurement
✔ No pressure or temperature correction needed
✔ Large measuring range
✔ Negligible pressure loss
✔ May be fitted in any position
✔ High degree of repeatability
✔ Analogue output 0 – 5 VDC, option 4 – 20 mA
✔ The employment of a precision needle valve enables minute flow control and monitoring
✔ Flow monitoring alarm 2 points output. (2 points each for any flow rate value.)
✔ I nstantaneous flow rate / analog output. (Voltage 0 – 5 V or 1 – 5 V or current 4 – 20 mA), integrated flow rate / pulse output installed.
✔ Compact and lightweight.
✔ The flowmeter is equipped with an indicator and can start measurement of flow rates as s✔ n as a 24 VDC power supply is connected.
✔ “Mass flow” enables direct reading of flow rates without a need of troublesome flow rate compensation calculation by temperature/pressure.

Application Examples

✔ Gas monitoring
✔ Paint lines
✔ Laminator systems
✔ Semiconductor industry
✔ Analysis devices
✔ Exhaust measurement
✔ Engineering
✔ N2 /O2 -generators
✔ Boiler controls

Datasheet Thermal Mass Flow Meter Kobold MAK

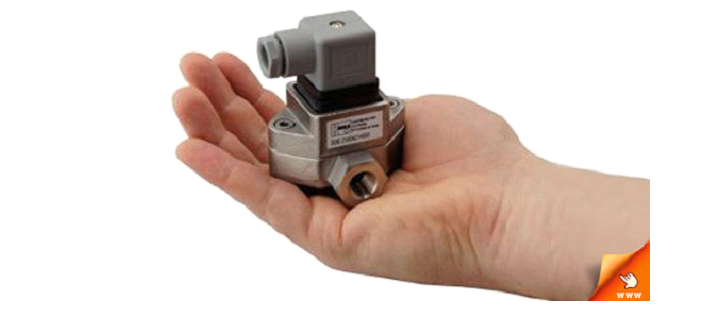

DOE – Oval Wheel Flowmeter Mini

Oval gear flowmeters are categorised as positive displacement flow technology. When liquid flows through this type of positive displacement flowmeter, two oval geared rotors measure a constant volume per rotation within a precisely machined measuring chamber.

With each rotation, a constant volume of liquid is measured. The rotation of the oval gears is sensed via magnets embedded within the rotors. These magnets transmit a high resolution pulse output. The output signal can be process externally via a remote display controller or PLC or via a variety of output/display options available as accessories attached to the flowmeters.

Datasheet Oval Wheel Flowmeter Kobold DOE

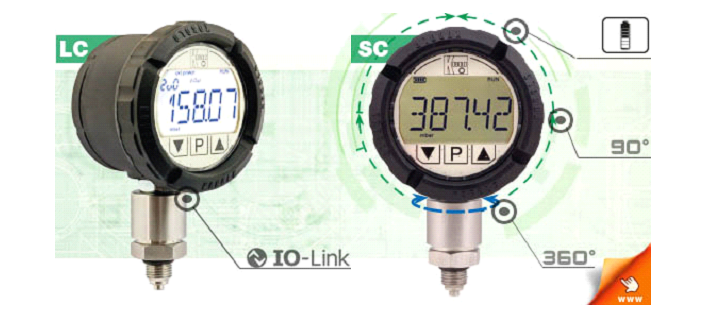

MAN SC/LC – Digital Pressure Gauge

The new MAN-LC model comes with IO-Link, the only Digital Pressure Gauge worldwide with IO-Link.

Many of the standard features included in the battery powered MAN-SC model are typical, however, the MAN-LC is 24Vdc powered and therefore further features are included, most noticeable when viewing the LC-display, is a backlit screen which combined with the new large display characters provides a clarity which traditional digital barrel transmitters cannot provide.

✔ Only Digital Pressure Gauge worldwide with IO-Link
✔ Touchpads for Programming
✔ 5-digit Display
✔ Digit height: 16 mm
✔ including Force Measurement via freely programmable area input
✔ Big choice of selectable engineering units
✔ User defined engineering unit possible
✔ incl. linear Frequency Output
✔ upto 2 Relay outputs possible via 8-pole connector (optional)
✔ Rubber protection sleeve (accessory)
✔ Assembly of numerous diaphragm seals possible
✔ Special measuring ranges (on request)

Datasheet Digital Pressure Gauge Kobold MAN SC-LC

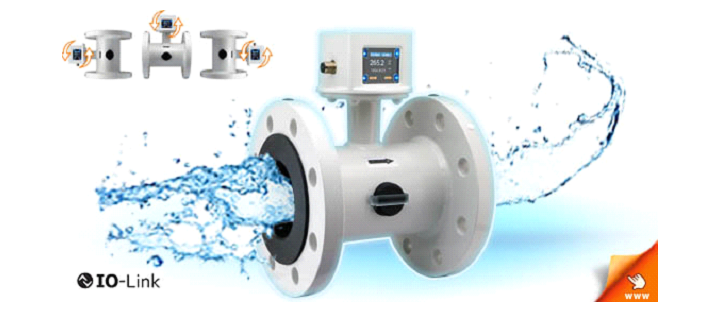

MIS – Electromagnetic Flow Meter

The new flowmeter MIS was developed for measuring and monitoring medium-sized flow of conductive liquids in pipes.
The device operates according to the electromagnetic measurement principle.

Main Features:
✔ Monitoring, dosing and transmitter function
✔ Dosing function with external control input
✔ Coloured, multi-parameter configurable TFT-display, rotatable in 90° steps
✔ Bidirectional measuring
✔ Intuitive setup menu via 4 optical touch keys
✔ 2 configurable outputs (pulse-/frequency-/alarm- and analogue output)
✔ Grand and resettable totaliser

Datasheet Electromagnetic Flow Meter Kobold MIS

Do not hesitate to contact us for any information: our technical staff is at your disposal!

.
